MS51114D

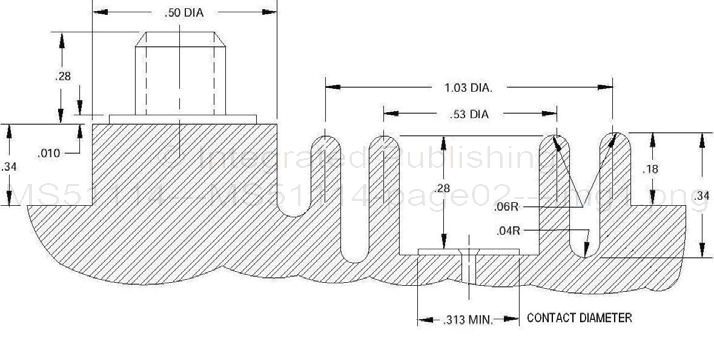

VIEW -A-A
Inches |
mm |
Inches |
mm |
.010 |
0.25 |
.53 |
13.5 |
.04 |
0.07 |
.72 |
18.3 |
.06 |
1.5 |
.75 |
19.0 |
.065 |
1.65 |
.875 |
22.22 |
.18 |
4.6 |
1.03 |
26.2 |
.209 |
5.31 |
1.09 |
27.7 |
.25 |
6.35 |
1.750 |
44.45 |
.28 |
7.11 |
2.06 |
52.3 |
.313 |
7.950 |
2.09 |
53.1 |
.34 |
8.64 |
2.234 |
56.74 |
.37 |
9.40 |
2.25 |
57.1 |
.44 |
11.2 |
3.09 |
78.5 |
.50 |
12.7 |
4.12 |
104.6 |
NOTES:
1.This epoxy potted coil contains an internal ballast resistance in series with the primary winding and is designed for use in distributors conforming to referenced specification.
2.Manufacturer's design will be acceptable in place of washer in accordance with NASM35333 if interchangeability and function are not affected.
3.Dimensions are in inches. Metric equivalents are given for information only. Unless otherwise
specified, tolerances are: ± .01 on 2 place decimals, ± 2° on angles, and ± .005 on 3 place decimals.
4.Threads shall be in accordance with screw thread standards ASME 81.1 or FED-STD-H28.
5.For design feature purposes this standard takes precedence over procurement documents referenced herein.
6.Reference documents shall be of the issue in effect on date of invitation for bid.
7.Marking - Terminal polarity shall be clearly and permanently identified adjacent to the terminal. The MS Part or Identifying Number (PIN). Manufacturers Identification - voltage rating - shall be applied to the part in accordance with MIL-STD-130.
8.This standard is not intended to limit construction other than as shown hereon by dimensions, notations and referenced documents.
FIGURE 1. Coil, ignition dimensions and configurations - Continued.
2
