MIL-PRF-46795 Generating System: Alternator, Rectifier, 60 Amperes, 28 VoltsThis specification covers 28 volts \(V\), direct current \(dc\) generating systems, engine driven through belt or direct connection, to provide 60 amperes \(A\) for charging and operating loads. The system consists of a rotating field alternator with integral diode rectifier and adjustable voltage regulator in a single housing. This specification also covers repair parts for this system.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12


MIL-PRF-46795H
110
NOMINAL EUT
LIMIT
SOURCE
RELAXATION
94
VOLTAGE
90
(AC & DC)
28V
BASIC CURVE
115V
6dB
70
220V
9dB
270V
10dB
440V
12dB
BASIC CURVE
50
30
100G
10K
100K
1M
10G
10M
100M
1G
Frequency (Hz)

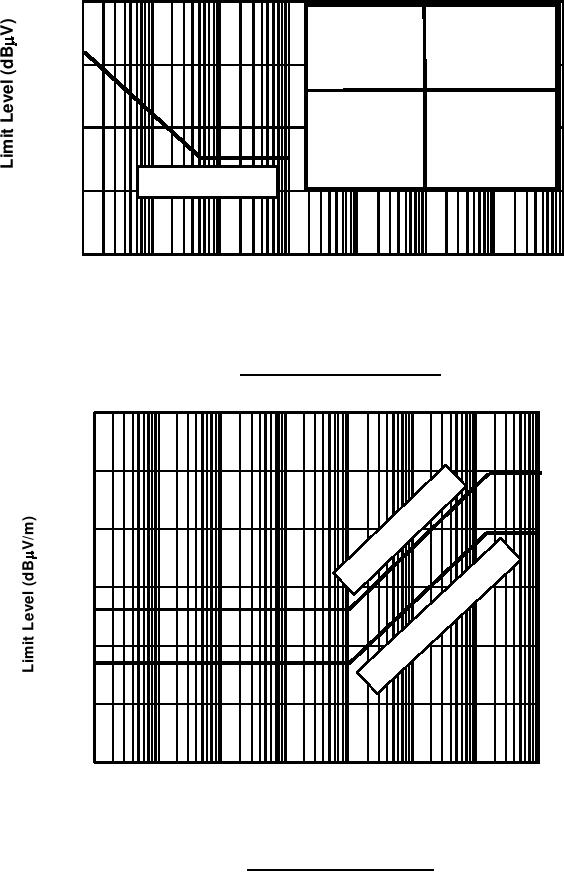

FIGURE 1. Conducted emissions levels.
110
90
89
AF
&
ED
70
X
69
FI
VY
Y
NA
M
AR
50
&
LE
44
BI
O
M
30
VY
24
NA
10
0
100G
10K
100K
1M
10G
10M
100M
1G
Frequency (Hz)
FIGURE 2. Radiated emissions levels.
