MIL-DTL-62576B
3.4.9.1 Type I. The residual voltage shall be no more than 1.5 V.
3.4.9.2 Types II and III. The residual voltage shall be no less than 0.7 V. For type III
only, this requirement shall be met with pin "E" of the battery connector grounded and
ungrounded.
3.4.10 Effective field circuit resistance.
3.4.10.1 Type I. The regulator resistance at all times shall be no greater than 2 ohms (Ω)
(see 4.5.9).
0.3
SEC
28.7 VOLTS
28.7
VOLTS
VOLTAGE
27.3 VOLTS
TRACE
27.3 VOLTS
V
T
650 AMP
LOAD APP.
CURRENT
LIMIT
LOAD
MODE
RELEASE
350 AMP
LOAD
0.3
NO LOAD
SEC
TIME

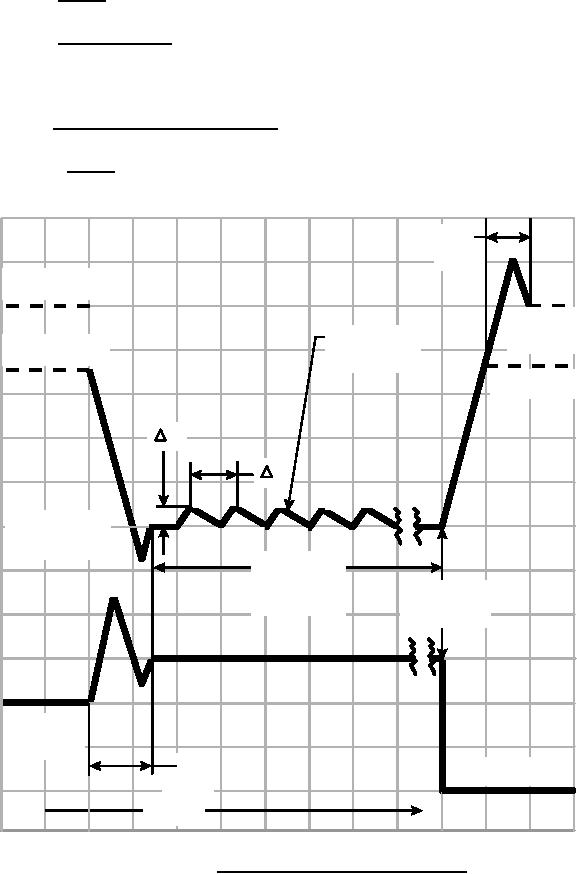

FIGURE 4. Current and voltage recovery time.
11
