MIL-DTL-62576B
3.4.6 Voltage ripple.
3.4.6.1 Type I. Not applicable.
3.4.6.2 Types II and III. The regulator output voltage waveform shall have the following
limitations. The ac peak to peak ripple voltage shall be no more than 7 V. With batteries
connected, the peak to peak ripple voltage shall be no greater than 4 V, except that excursions of
less than 1 millisecond (ms) may exceed 4 V (see 4.5.5). For type III only, this requirement shall
be met with pin "E" of the battery connector grounded and ungrounded.
(ER) SEE FIGURE 5
I
40
H
J
29
28.7
F
A
B
28
G
K
L
27.3
27
C
E
VOLTAGE
26
REGULATION
25
BAND
24
20
19
D
LOAD RANGE
(A-B) - BATTERY LOAD ONLY PRIOR
(G) - POINT OF LOAD DISCONNECTION
TO LOAD APPLICATION
(H-J) - VOLTAGE OVERSHOOT
RECOVERY TIME
(B) - POINT OF LOAD APPLICATION
(I)
- OVERSHOOT VOLTAGE
(C-E) - VOLTAGE UNDERSHOOT
(K-L) - BATTERY VOLTAGE AFTER
RECOVERY TIME
LOAD DISCONNECT
(D) - UNDERSHOOT VOLTAGE
(C-E) - MAX. TIME LIMIT - 0.125 SEC
(F-G) - REGULATED VOLTAGE (ER)
(H-J) - MAX. TIME LIMIT - 0.300 SEC
DURING APPLIED LOAD
(STEADY STATE)

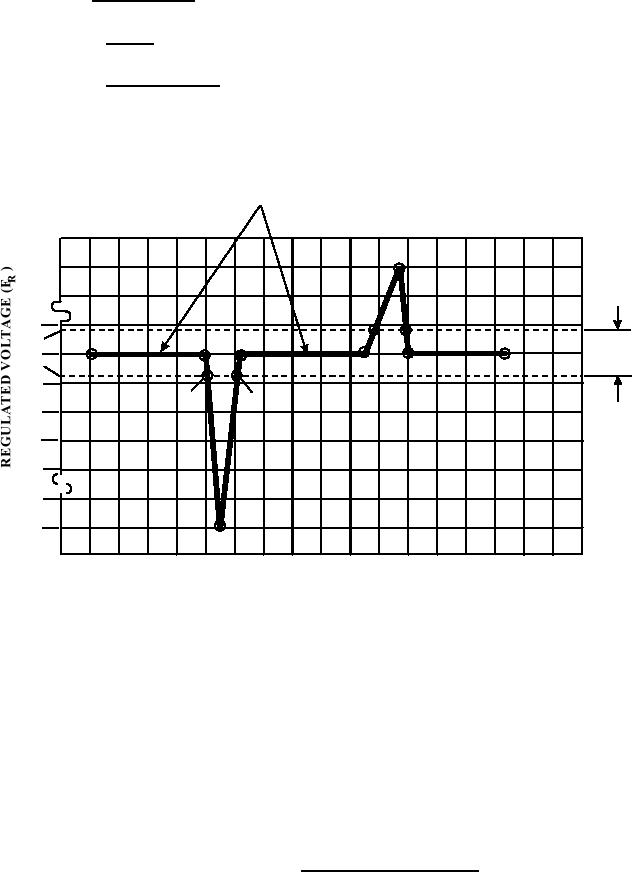

FIGURE 1. Voltage regulation limits
7
